1.2. Spatially invariant deconvolution

1.2.1. Introduction

Deconvolutions when the PSF is constant across the field of view can be carried out using the torchmfbd.Deconvolution class. The following example shows how to deconvolve two objects with a constant PSF. When the anisoplanatic patch is smaller than the field of view, the deconvolution can be carried out in parallel for all anisoplanatic patches. To this end, the field of view is mosaicked using the functions provided by torchmfbd v0.1.

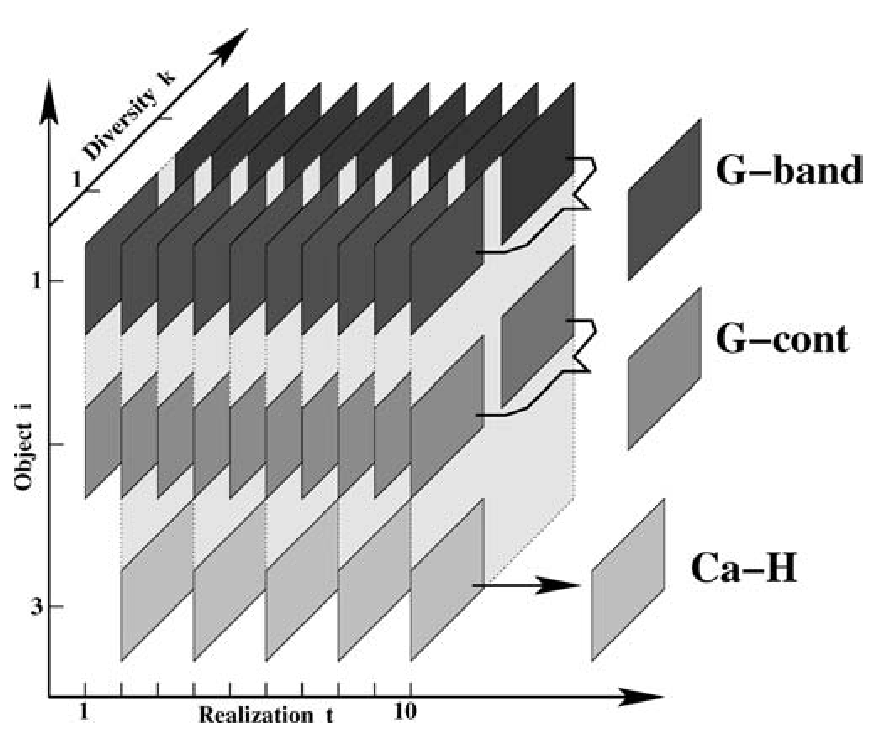

Using the following figure from van Noort et al. (2005), torchmfbd.Deconvolution can be used to deconvolve a burst of images taken for different objects and with potentially several phase diversity channels. All objects and diversity images are assumed to be obtained strictly simultaneously, so that the wavefront is the same for all of them. Diversity channels differ in a known defocus.

../_images/frames.png

1.2.2. Example

The following example shows how to deconvolve a field of view with two objects without a diversity channel. The field of view is first mosaicked into patches, and the deconvolution is carried out in parallel for each patch. First we define a configuration file that controls the general behavior of the deconvolution. This configuration file can also be defined in the code as a dictionary:

telescope:
    diameter: 100.0
    central_obscuration : 0.0

images:
    n_pixel : 64
    pix_size : 0.059
    apodization_border : 6

object1:
    wavelength : 8542.0
    image_filter: tophat
    cutoff : [0.75, 0.80]

object2:
    wavelength : 8542.0
    image_filter: tophat
    cutoff : [0.75, 0.80]

optimization:
    gpu : 0
    transform : softplus
    softplus_scale : 1.0
    lr_obj : 0.02
    lr_modes : 0.08
    shod_object_info : False

regularization:
    iuwt1:
        variable : object
        lambda : 0.0
        nbands : 5

psf:
    model : kl
    nmax_modes : 44

initialization:
    object : contrast
    modes_std : 0.0

annealing:
    type: sigmoid
    start_pct : 0.0
    end_pct : 0.85

The deconvolution can be carried out by the following code:

deconv = torchmfbd.Deconvolution('qs_8542_kl_patches.yaml')

# Patchify and add the frames
frames_patches = [None] * 2
for i in range(2):
    frames_patches[i] = patchify.patchify(frames[:, i, :, :, :], patch_size=64, stride_size=50, flatten_sequences=True)
    decSI.add_frames(frames_patches[i], id_object=i, id_diversity=0, diversity=0.0)


deconv.deconvolve(infer_object=False,
                 optimizer='first',
                 simultaneous_sequences=16,
                 n_iterations=20)

obj = []
frames_back = []
for i in range(2):
    obj.append(patchify.unpatchify(deconv.obj[i], apodization=6).cpu().numpy())
    frames_back.append(patchify.unpatchify(frames_patches[i], apodization=0).cpu().numpy())

npix = obj[0][0, :, :].shape[0]

fig, ax = pl.subplots(nrows=2, ncols=2, figsize=(10, 10))
for i in range(2):
    ax[0, i].imshow(frames[0, i, 0, 0:npix, 0:npix])
    ax[1, i].imshow(obj[i][0, :, :])

First, we instantiate the torchmfbd.Deconvolution class with the configuration file. We then patchify the frames and add them to the deconvolution object. The field of view is mosaicked into patches of size 64x64 with a stride of 50 pixels, so that they overlap. The frames are added object by object, indicating the index of the object id_object and the index of the diversity channel id_diversity. In this case, we have two objects and no diversity channel, so we set id_diversity=0 and diversity=0.0. You can add as many objects and diversity channels per object as you want.

The deconvolution is carried out by calling the deconvolve method. The method takes several arguments:

  • infer_object: If False, the object is inferred using the analytic solution given by the Wiener filter (see, e.g., van Noort et al. (2005)). Otherwise, the object is inferred by the optimizer.

  • optimizer: The optimizer to use. The optimizer can be either first (first order Adam) or second (second order L-BFGS, that is more memory and time consuming but more efficient in terms of number of iterations).

  • simultaneous_sequences: The number of patches to deconvolve simultaneously. If you have plenty of VRAM, you can increase this number to speed up the deconvolution.

  • n_iterations: The number of iterations to carry out.

1.2.3. Output

2025-02-04 10:17:32,102 - deconvolution  - Using configuration file qs_8542_kl_patches.yaml
2025-02-04 10:17:32,125 - deconvolution  - Computing in NVIDIA GeForce RTX 4090 (free 22.14 GB) - cuda:0
2025-02-04 10:17:32,125 - deconvolution  - Using apodization mask with a border of 6 pixels
2025-02-04 10:17:32,168 - deconvolution  - Telescope
2025-02-04 10:17:32,168 - deconvolution  -   * D: 100.0 m
2025-02-04 10:17:32,168 - deconvolution  -   * pix: 0.059 arcsec
2025-02-04 10:17:32,407 - deconvolution  - Adding frames for object 0 - diversity 0 - defocus 0.0
2025-02-04 10:17:32,407 - deconvolution  - Estimating noise...
2025-02-04 10:17:33,002 - deconvolution  - Adding frames for object 1 - diversity 0 - defocus 0.0
2025-02-04 10:17:33,002 - deconvolution  - Estimating noise...
2025-02-04 10:17:33,542 - deconvolution  -  *****************************************
2025-02-04 10:17:33,543 - deconvolution  -  *** SPATIALLY INVARIANT DECONVOLUTION ***
2025-02-04 10:17:33,543 - deconvolution  -  *****************************************
2025-02-04 10:17:33,543 - deconvolution  - Setting up frames...
2025-02-04 10:17:33,590 - deconvolution  - PSF model: wavefront expansion
2025-02-04 10:17:33,590 - deconvolution  - Found basis file with 44 modes that can be used for 44 modes
2025-02-04 10:17:33,590 - deconvolution  - Loading precomputed KL basis: basis/kl_100cm_64px_8542A_44.npz
2025-02-04 10:17:33,598 - deconvolution  - Wavefront
2025-02-04 10:17:33,598 - deconvolution  -   * Using 44 modes...
2025-02-04 10:17:33,598 - deconvolution  - Wavelength 0 (8542.0 A)
2025-02-04 10:17:33,598 - deconvolution  -   * Diffraction: 0.176191563 arcsec
2025-02-04 10:17:33,598 - deconvolution  -   * Diffraction (x1.22): 0.21495370685999998 arcsec
2025-02-04 10:17:33,607 - deconvolution  - Frames
2025-02-04 10:17:33,607 - deconvolution  -   * Object 0
2025-02-04 10:17:33,607 - deconvolution  -      - Number of sequences 81...
2025-02-04 10:17:33,607 - deconvolution  -      - Number of frames 12...
2025-02-04 10:17:33,607 - deconvolution  -      - Number of diversity channels 1...
2025-02-04 10:17:33,608 - deconvolution  -        -> Diversity 0 = 0.0...
2025-02-04 10:17:33,608 - deconvolution  -      - Size of frames 64 x 64...
2025-02-04 10:17:33,608 - deconvolution  -   * Object 1
2025-02-04 10:17:33,608 - deconvolution  -      - Number of sequences 81...
2025-02-04 10:17:33,608 - deconvolution  -      - Number of frames 12...
2025-02-04 10:17:33,608 - deconvolution  -      - Number of diversity channels 1...
2025-02-04 10:17:33,608 - deconvolution  -        -> Diversity 0 = 0.0...
2025-02-04 10:17:33,608 - deconvolution  -      - Size of frames 64 x 64...
2025-02-04 10:17:33,608 - deconvolution  - Regularization
2025-02-04 10:17:33,608 - deconvolution  - Adding modes using sigmoid schedule
2025-02-04 10:17:33,608 - deconvolution  - Processing sequences [1,14]/81
2025-02-04 10:17:33,629 - deconvolution  - Initializing modes with zeros...
2025-02-04 10:17:33,630 - deconvolution  - Optimizing modes only...
100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 20/20 [00:00<00:00, 125.04it/s, gpu=16 %, mem=2192.8/24564.0 MB ( 8.9%), active=44, contrast=6.8165, minmax=0.7718/ 1.6871, LMSE=0.040005, LOBJ=0.000000, L=0.0400]
2025-02-04 10:17:33,792 - deconvolution  - Processing sequences [15,28]/81
2025-02-04 10:17:33,792 - deconvolution  - Initializing modes with zeros...
2025-02-04 10:17:33,792 - deconvolution  - Optimizing modes only...
100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 20/20 [00:00<00:00, 304.56it/s, gpu=16 %, mem=2236.8/24564.0 MB ( 9.1%), active=44, contrast=7.7578, minmax=0.7042/ 1.7335, LMSE=0.045078, LOBJ=0.000000, L=0.0451]
2025-02-04 10:17:33,858 - deconvolution  - Processing sequences [29,42]/81
2025-02-04 10:17:33,858 - deconvolution  - Initializing modes with zeros...
2025-02-04 10:17:33,858 - deconvolution  - Optimizing modes only...
100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 20/20 [00:00<00:00, 306.41it/s, gpu=16 %, mem=2258.8/24564.0 MB ( 9.2%), active=44, contrast=6.5759, minmax=0.7459/ 1.6867, LMSE=0.042037, LOBJ=0.000000, L=0.0420]
2025-02-04 10:17:33,924 - deconvolution  - Processing sequences [43,55]/81
2025-02-04 10:17:33,936 - deconvolution  - Initializing modes with zeros...
2025-02-04 10:17:33,936 - deconvolution  - Optimizing modes only...
100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 20/20 [00:00<00:00, 243.11it/s, gpu=35 %, mem=2260.8/24564.0 MB ( 9.2%), active=44, contrast=5.5843, minmax=0.7154/ 1.4883, LMSE=0.038261, LOBJ=0.000000, L=0.0383]
2025-02-04 10:17:34,019 - deconvolution  - Processing sequences [56,68]/81
2025-02-04 10:17:34,019 - deconvolution  - Initializing modes with zeros...
2025-02-04 10:17:34,019 - deconvolution  - Optimizing modes only...
100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 20/20 [00:00<00:00, 319.36it/s, gpu=35 %, mem=2262.8/24564.0 MB ( 9.2%), active=44, contrast=5.4903, minmax=0.7996/ 1.3550, LMSE=0.036806, LOBJ=0.000000, L=0.0368]
2025-02-04 10:17:34,083 - deconvolution  - Processing sequences [69,81]/81
2025-02-04 10:17:34,083 - deconvolution  - Initializing modes with zeros...
2025-02-04 10:17:34,083 - deconvolution  - Optimizing modes only...
100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 20/20 [00:00<00:00, 315.16it/s, gpu=35 %, mem=2284.6/24564.0 MB ( 9.3%), active=44, contrast=5.4909, minmax=0.7334/ 1.3897, LMSE=0.036584, LOBJ=0.000000, L=0.0366]

Once the deconvolution is finished, several attributes are available in the deconvolution object:

  • obj: The deconvolved objects.

  • obj_diffraction: The deconvolved objects convolved with the diffraction-limited PSF.

  • psf: The inferred PSFs

  • degraded: The object convolved with the inferred PSFs. They can be used to check the quality of the deconvolution because they should be similar to the input frames.

The mosaicking is undone by calling the unpatchify function.

1.2.4. Modifying filter

The cutoff frequencies of the filters can be modified after deconvolution without the need to redo the deconvolution by using:

deconv.update_object(cutoffs=[[0.5, 0.55], [0.5, 0.65]])

The cutoffs for all objects are passed as a list of lists.
